Hydraulic Couplers

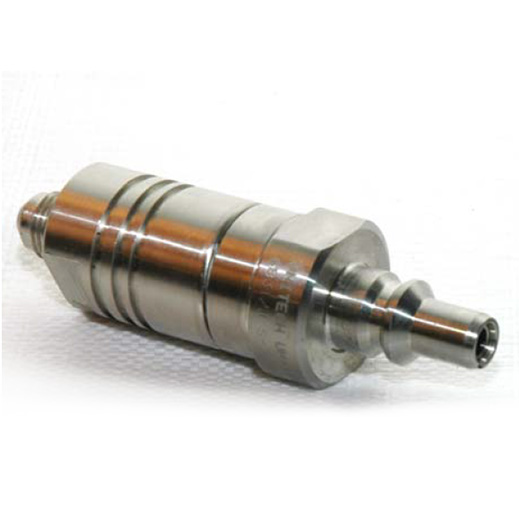

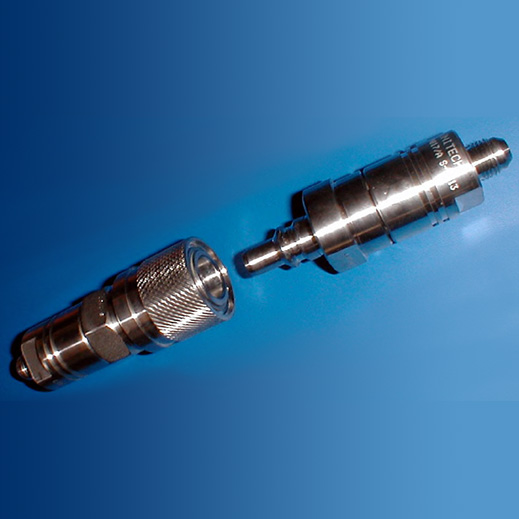

Designed as a subsea connector from the outset, UNITECH’s UH-100 Series heavy duty, self sealing, hydraulic couplers are based on over 20 years’ field experience. Our hydraulic couplers are standard on all UNITECH MQC and stab plates and are available with metal seals for the most demanding applications.
- High pressure hydraulic coupler
- Up to 30K psi, 200C and 3,000m water depth rated
- 40 year design life
- Male: Duplex 220 & S-165M
- Female: Inconel 625 & Nitronic 50
- Connect / disconnect under full working pressure
- Unique seal cartridge permitting quick seals exchange
- Metal seal option.
UH-100 Coupler Size Chart
| UH-107 | ¼ – ½ inch |
| UH-112 | ½ – 1 inch |
| UH-120 | ¾ – 1¼ inch |
| UH-136 | 1½ – 2 inch |
| UH-150 | 2 – 3 inch |
| UH-1100 | 4 – 5 inch |
